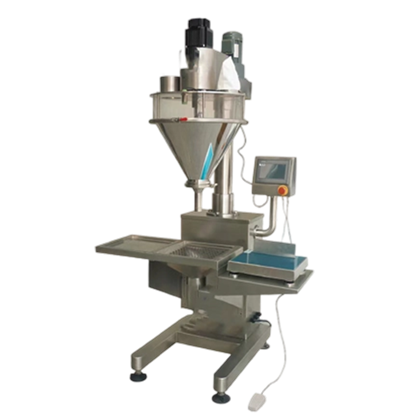

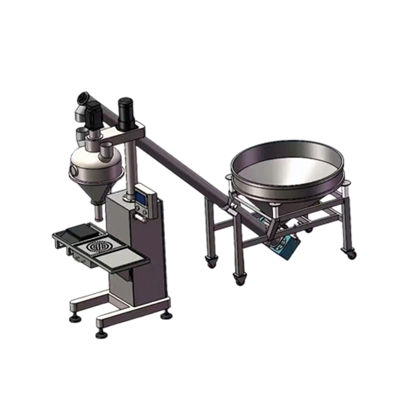

10-5000g powder semi-automatic packaging machine
- All stainless steel structure; Combined or open transparent material box, which can be easily disassembled and washed without tools.
- Servo motor and servo drive control screw。
- PLC control, touch screen human-machine interface display, easy to operate.
- Designed with weighing feedback specific gravity tracking, it overcomes the shortcomings of changes in packaging weight due to changes in material specific gravity.
- Various product adjustment parameter formulas can be stored for later use, with a maximum of 10 formulas stored.
- By replacing the spiral attachment, it can adapt to a variety of materials from ultra-fine powder to small particles.
Solid 10g-1000kg stand-alone packaging equipment
Semi-automatic packaging machine series 10-5000g powder semi-automatic packaging machine
Product overview
Main features
Technical parameters
DCS-5000 series
This series of packaging machines can complete tasks such as metering and filling. Due to the unique design, it is even more suitable for packaging powdery and granular materials that are easy to flow or have poor fluidity, such asFlour, cocoa powder, solid beverages, white sugar, marshmallow, MSG, solid beverages, veterinary drugs, glucose, solid medicines, powdered additives, toner, talcum powder, pesticides, dyes, flavors and fragranceswait.
Main features
- All stainless steel structure; Combined or open transparent material box, which can be easily disassembled and washed without tools.
- Servo motor and servo drive control screw。
- PLC control, touch screen human-machine interface display, easy to operate.
- Designed with weighing feedback specific gravity tracking, it overcomes the shortcomings of changes in packaging weight due to changes in material specific gravity.
- Various product adjustment parameter formulas can be stored for later use, with a maximum of 10 formulas stored.
- By replacing the spiral attachment, it can adapt to a variety of materials from ultra-fine powder to small particles.
Main technical parameters
| Material box | Packing weight | Packaging accuracy | filling speed | power supply | Machine power | Overall machine weight | Overall machine volume |
|---|---|---|---|---|---|---|---|
| Combined transparent material box 25-50-75 liters | 1-500g | ≤100g, ≤±2%；100-500g, ≤±1% | 40-120 times/minute | 3P AC208-415V 50/60Hz | 0.93 Kw | 130kg | 800×790×1900mm |
| Combined transparent material box 25-50-75 liters | 10-5000g | ≤100g, ≤±2%；100-500g, ≤±1%；≥500g, ≤±0.5% | 40-120 times/minute | 3P AC208-415V 50/60Hz | 1.4Kw | 260kg | 1140×970×2030mm |
