25-50kg semi-automatic weighing unit (single and double scales)
Product introduction
The 25-50kg semi-automatic weighing unit is suitable for accurate weighing and packaging of various granular materials. It has the characteristics of high efficiency and high precision and is widely used in feed, chemical, building materials and other industries.
25-50kg semi-automatic weighing unit (single/double scale)
Product overview
Main features
Technical parameters
Product introduction
The 25-50kg semi-automatic weighing unit is suitable for accurate weighing and packaging of various granular materials. It has the characteristics of high efficiency and high precision, and is widely used in feed, chemical, building materials and other industries.
Applicable materials
soybean meal
feed
seed
Building materials
Compound fertilizer
Chemical raw materials
polypropylene
EPP particles
Various granular materials

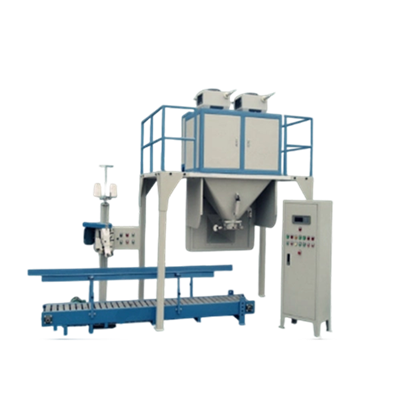

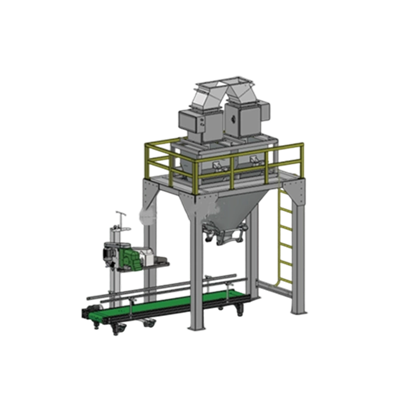

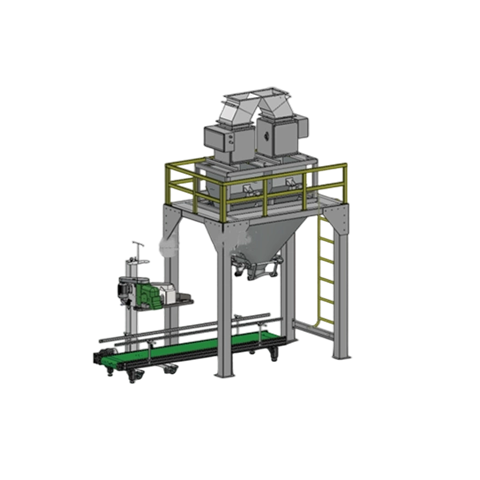

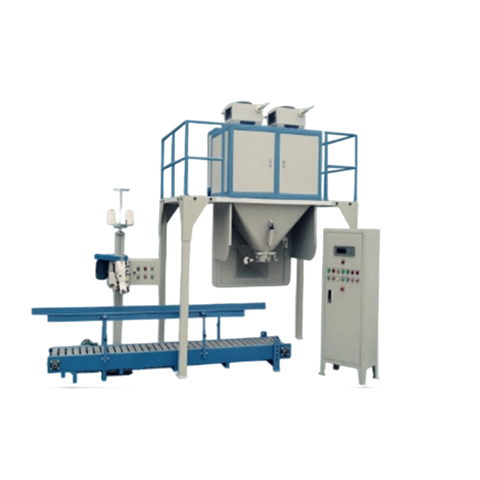

25-50kg semi-automatic weighing unit equipment pictures
Main features
- The parts in contact with the material are made of stainless steel, which has strong corrosion resistance, high hygiene standards and long service life of the equipment.
- The unique feeder design, dual cylinder drive, and adjustable feeding door can adapt to different material changes and meet high-speed and high-precision requirements.
- Easy to clean and maintain, with few transmission parts and low failure rate.
- Direct bagging and weighing is suitable for quick measurement and packaging of light specific gravity and large weight.
- 20 different packaging weights are pre-stored to meet a variety of measurement and packaging requirements, making it easy and quick to call up recipes.
- Excellent imported and domestic electrical devices and pneumatic components are selected to ensure stable and stable operation of the equipment.
- Dust covers and dust removal devices can be added according to the characteristics of the materials.
Basic parameters
Packaging parameters
Packaging accuracy and speed Depends on material characteristics
Power parameters
Power consumption About 1.1KW/hour
power supply AC380V/50Hz/±10%
Air source parameters
Air source (compressed air) 0.5Mpa
Main technical parameters
| model | Packing weight(Kg) | Packaging speed (bag/hour) | Accuracy | Installation dimensions (mm) (including conveyor) | Machine weight approx. (Kg) |
|---|---|---|---|---|---|
| DCS50K-50 | 25~50 | 260~300 | 0.2% | 3000×1500×3500(length×width×height) | 800 |
| DCS50K-S50 | 25~50 | 500~550 | 0.2% | 3000×1500×3500(length×width×height) | 800 |
Equipment Features Description
- Single scale model DCS50K-50 is suitable for situations with general production efficiency requirements.
- Dual scale model DCS50K-S50 has higher packaging speed and is suitable for mass production needs
- Both models offer high-precision weighing with an accuracy of 0.2%
- Installation dimensions include conveyor for easy production line integration
