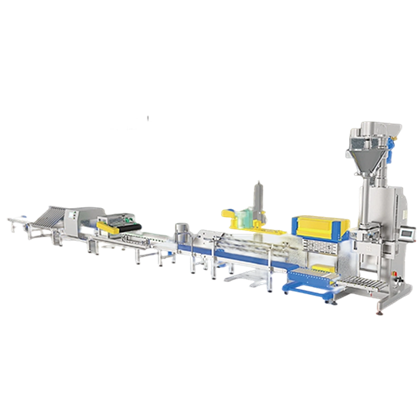

25-50kg bag packaging production line
Product introduction
When designing and manufacturing this unit, factors such as preventing materials from sticking to the wall and arching are fully considered. An arch-breaking device is used at the blanking part to effectively promote the flow of materials, prevent materials from sticking to the wall, and ensure weighing accuracy and equipment continuity and reliability.
The vertical spiral feeding mechanism can greatly reduce dust flying during the feeding process. The "zero drop" feeding technology combined with the bag dust collection system ensures maximum cleanliness in the workshop.
This unit can be combined with automatic conveyors, bag sewing machines, bag pouring, shaping, weight detection, metal detection, rejection and coding packaging systems to form an automated production line.
25-50kg bag packaging production line
Product introduction
When designing and manufacturing this unit, factors such as preventing materials from sticking to the wall and arching are fully considered. An arch-breaking device is used at the blanking part to effectively promote the flow of materials, prevent materials from sticking to the wall, and improve weighing accuracy and equipment continuity and stability.
The vertical spiral feeding mechanism can greatly reduce dust flying during the feeding process. The "zero drop" feeding technology combined with the bag dust collection system ensures maximum cleanliness in the workshop.
This unit can be combined with automatic conveyors, bag sewing machines, bag pouring, shaping, weight detection, metal detection, rejection and coding packaging systems to form an automated production line.
Technical features
Anti-stick wall design
An arch-breaking device is used at the blanking part to effectively promote material flow, prevent materials from sticking to the wall, and improve weighing accuracy and equipment continuity and stability.
Low dust design
The vertical spiral feeding mechanism greatly reduces dust flying during the feeding process. The "zero drop" feeding technology cooperates with the bag dust collection system to ensure a clean workshop.
Automation integration
It can be combined with automatic conveyors, bag sewing machines, bag pouring, shaping, weight detection, metal detection, rejection and coding packaging systems to form a complete automated production line.
Overview of key parameters
Main technical parameters
| model | Packing weight | Packaging accuracy | filling speed | power supply | compressed air | Machine power | Overall machine weight | Overall machine volume | Material box volume |
|---|---|---|---|---|---|---|---|---|---|
| LS-L25 | 1g-900g | <100g,≤±1-2%;100-900g,≤±1-2g | 8-15 times/minute | 3P AC208-415V 50/60Hz | 6kg/cm³ 0.1cbm/min | 0.93Kw | 130kg | 800×790×1900mm | 25L |
| LS-L50 | 10g-5000g | 100-1000g,≤±2g;≥1000g,≤±0.1-0.2% | 5-12 times/minute | 3P AC208-415V 50/60Hz | 6kg/cm³ 0.1cbm/min | 1.4Kw | 260kg | 1200×900×2200mm | 50L |
| LS-L75 | 100g-10kg | 100-1000g,≤±2g;≥1000g,≤±0.1-0.2% | 2-8 times/minute | 3P AC208-415V 50/60Hz | 6kg/cm³ 0.1cbm/min | 2.25Kw | 350kg | 1205×1010×2350mm | 75L |
Application Notes
- The unit was designed and manufactured with full consideration of factors such as preventing materials from sticking to walls and caking.
- The vertical spiral feeding mechanism can greatly reduce dust flying during the feeding process.
- "Zero drop" feeding technology combined with the bag dust collection system ensures maximum cleanliness in the workshop
- Can be combined with automatic conveyor, bag sewing machine, bag pouring, shaping, weight detection, metal detection, rejection and coding packaging system to form an automated production line
