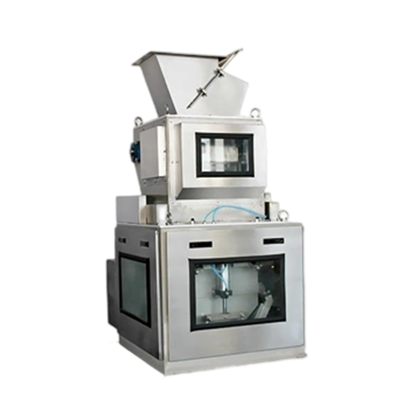

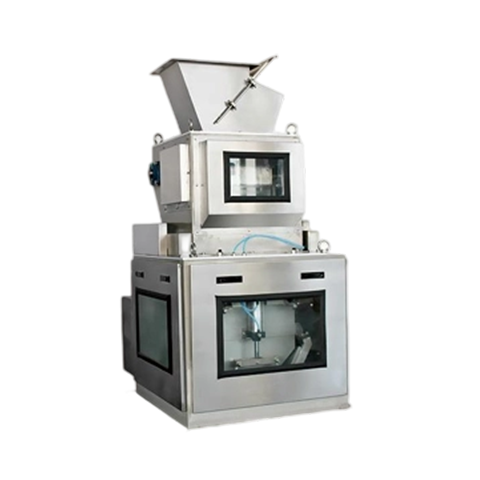

High speed servo scale
Product introduction
High-speed servo scales are mainly used in agricultural products, food, and chemical industries, such as corn seeds, granular fertilizers and other fluid materials, and can complete automatic measurement, automatic filling, etc. Using servo motor to control the valve size, the response speed is fast.
High speed servo scale
Product introduction
High-speed servo scales are mainly used forAgricultural products, food, chemical industry, such as corn seeds, granular fertilizers and other fluid materials, can complete automatic measurement, automatic filling and other tasks. useServo motor controls valve size, fast response.
Notice:This equipment is not suitable for semi-automatic operation. It is recommended to be used with a fully automatic packaging system for heavy bags.
Applicable materials
Main features
- useServo motor control valve, fast response speed and high control accuracy
- Suitable for materials with good fluidity, such as corn seeds, granular fertilizers, etc.
- Able to complete automatic measurement and automatic filling work to improve production efficiency
- The equipment has compact structure and small floor space.
- Suitable for agricultural products, food, chemical industry and other industries
- Recommended to be used with heavy bag fully automatic packaging system
Overview of key parameters
Main technical parameters
| Measuring range | Measuring speed | Accuracy level | power supply | Working pressure | Overall dimensions | Weighing bucket volume | Silo volume |
|---|---|---|---|---|---|---|---|
| 25kg-50kg (Based on the proportion of the customer’s materials) |
6-15 times/minute | Level x(0.2) | 220V 50HZ 0.8KW |
0.5~0.8MPa | 812×812×1594mm | 70L | Matching customer's storage silo |
Application Notes
- The measurement range can be adjusted according to the specific gravity of the customer's materials
- The silo volume can be designed to match the customer's existing storage silo.
- The equipment is suitable for materials with good fluidity
- Recommended to be used with heavy bag fully automatic packaging system
