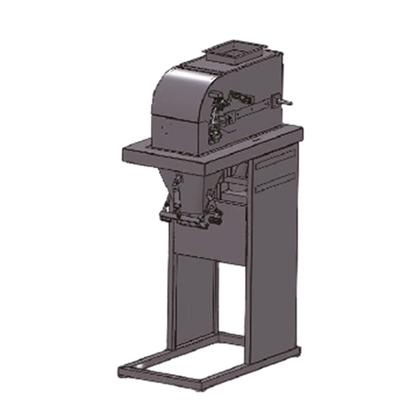

Belt scale
Product introduction
Belt scales are mainly used for automatic measurement of irregular materials or flake materials. The accuracy is controlled by adjusting the feeding speed of the belt and the opening of the gate. A variety of different parameters can be set to realize the selection of different products and measurement values.

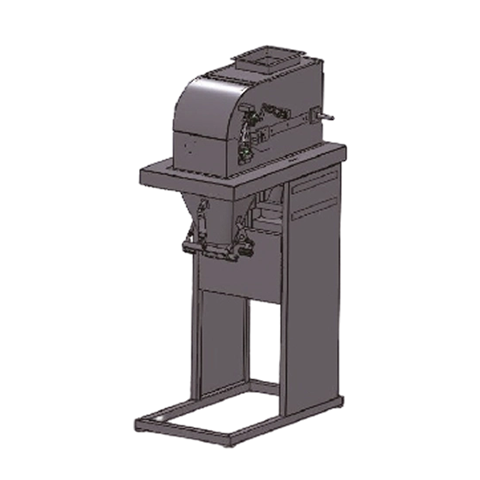

Belt scale
Product introduction
Belt scales are mainly used for automatic measurement of irregular materials or flake materials. The accuracy is controlled by adjusting the feeding speed of the belt and the opening of the gate. A variety of different parameters can be set to realize the selection of different products and measurement values.
Applicable materials
Performance characteristics
- Suitable for automatic measurement of irregular or sheet materials
- Control accuracy by adjusting belt feeding speed and gate opening
- A variety of different parameters can be set to realize the selection of different products and measurement values.
- High degree of automation and easy operation
- Stable structure, suitable for industrial environment
- Easy maintenance and long service life
Control function
Feeding speed adjustment
Control the material feeding amount by adjusting the belt speed to achieve accurate metering
gate control
Accurately control the opening degree of the gate and further adjust the measurement accuracy
Parameter settings
A variety of parameters can be set to adapt to different products and measurement requirements
Overview of key parameters
Main technical parameters
| Parameter name | Parameter value | illustrate |
|---|---|---|
| Weighing range | 10-50kg | Depends on the specific gravity of the material |
| Weighing speed | 3-5 bags/minute | Adjustable according to material characteristics |
| Weighing accuracy | ±0.2% | High-precision measurement |
| Power requirements | AC380V 50Hz | Standard industrial power supply |
| power | 1.5kW | Equipment operating power |
Application Notes
- Mainly used for automatic measurement of irregular materials or sheet materials
- Suitable for metering and packaging of caustic soda, dehydrated vegetables, tea and other materials
- Control metering accuracy by adjusting belt speed and gate opening
- A variety of parameters can be set to adapt to the measurement requirements of different products
