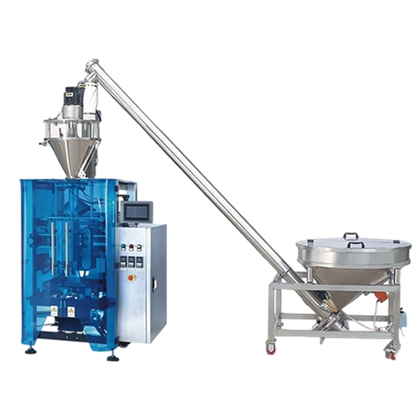

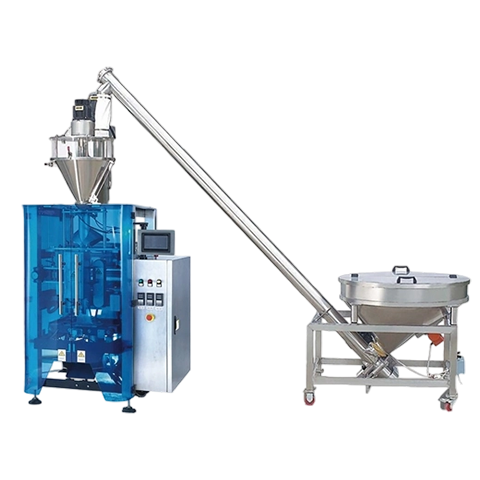

Fully automatic powder packaging equipment
Product introduction
This unit is mainly used for automatic filling and metering of powder materials (such as rice flour, milk powder, building materials, coffee powder, seasoning powder, toner). The whole machine can be made fully sealed and complies with pharmaceutical GMP requirements.
Fully automatic powder packaging equipment
Product overview
Performance characteristics
Technical parameters
Product introduction
This unit is mainly used for automatic filling and metering of powder materials (such as rice flour, milk powder, building materials, coffee powder, seasoning powder, toner). The whole machine can be made fully sealed and complies with pharmaceutical GMP requirements.
Applicable materials
rice flour
milk powder
building materials
coffee powder
seasoning powder
Toner
Other powder materials
Performance characteristics
- This machine integrates bag making, filling, sealing, printing, punching and counting.
- It uses a servo motor to pull the film and has an automatic correction function.
- The horizontal seal can be driven in two forms: cylinder and servo (to facilitate customers' selection under different working conditions).
- The vertical sealing mechanism has two types: palm-joining type and pressing type (users can choose according to the specific materials and film rolling conditions).
- The machine has good sealing performance and can meet customer hygiene requirements.
- All electrical and control components are from well-known domestic and foreign brands with stable performance.
- The whole machine can be made fully sealed and meets the requirements of pharmaceutical GMP.
Overview of key parameters
Metering parameters
Measuring range 100g-5000g (expandable to 10000g)
packaging speed 8-30 bags/min
Measuring accuracy ±0.5%
Packaging parameters
Bag size (length × width) (50-460)×(80-350)mm
Maximum allowable outer diameter of packaging material Φ400mm
Roll paper core inner diameter Φ75mm
Other parameters
Compressed air requirements 0.6MPa 0.36M³/min
Machine weight 1000kg
Main technical parameters
| Measuring range | packaging speed | Bag size (length × width) | Measuring accuracy | Compressed air requirements | Maximum allowable outer diameter of packaging material | Roll paper core inner diameter | Machine weight |
|---|---|---|---|---|---|---|---|
| 100g-5000g (expandable to 10000g) | 8-30 bags/min | (50-460)×(80-350)mm | ±0.5% | 0.6MPa 0.36M³/min | Φ400mm | Φ75mm | 1000kg |
Application Notes
- Suitable for automatic filling and metering of various powder materials
- The whole machine can be made fully sealed and meets the requirements of pharmaceutical GMP.
- The measurement range can be expanded according to customer needs
- Packaging speed can be adjusted according to actual production needs
