Fully automatic bag packaging machine
Product introduction
This series of fully automatic rotary bag feeding machines is independently developed by our company. With the accumulation and accumulation of customer use in the industry, we have created a stable and reliable intelligent packaging unit that complies with the GMP standards of the pharmaceutical industry.
Fully automatic bag feeding machine packaging machine
Product introduction
This series of fully automatic rotary bag feeding machines is independently developed by our company. With the accumulation and precipitation of customers in the industry, we have created a stable and stable intelligent packaging unit that complies with the GMP standards of the pharmaceutical industry.

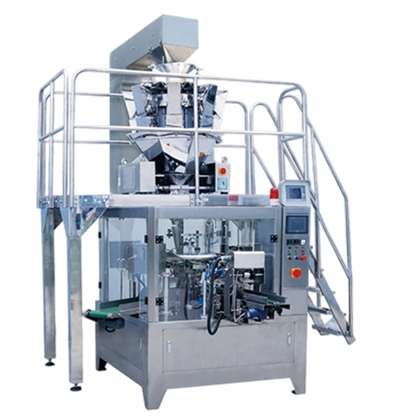

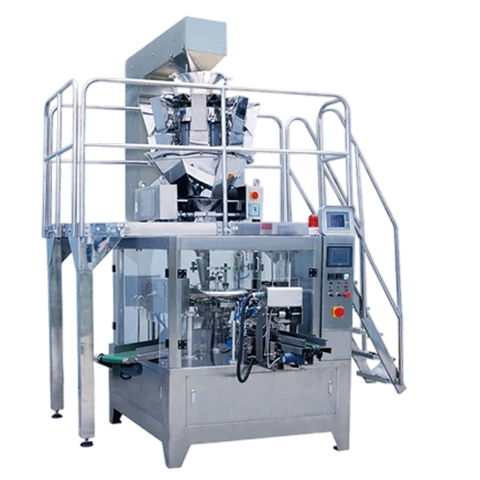

Pictures of fully automatic rotary bag feeding machine equipment
Main features
- Applicable bag type: Flat bag, stand-up bag, zipper bag
- Safety performance: No bag - no filling - no sealing
- Intelligent detection: The bag cannot be opened or is incompletely opened - not filled - not sealed
- Comply with pharmaceutical industry GMP standards
- Independent research and development, stable and stable
- Intelligent packaging unit
Overview of key parameters
Workflow
Notice:The packaging speed is determined by the material itself and the filling weight, and the specific parameters can be adjusted according to actual needs.
Main technical parameters
| Parameter name | Parameter value | Parameter name | Parameter value |
|---|---|---|---|
| model | 6-200, 6-300, 8-200, 8-300 | Packaging bag material | Composite film |
| Mechanical work station | Six workstations, eight workstations | Mechanical weight | 1300KGS |
| packaging speed | 10-50 bags/min (the speed is determined by the material itself and filling weight) | Voltage | 380V 3PH 50HZ |
| Packaging bag type | Flat bags, handbags, four-side sealing bags, three-side sealing bags and other composite film bags | total power | 2.5KW |
| Bag size | W:120-300mm L:100-450mm(standard) | Compressor specifications | 0.6m³/min (provided by user) |
Application Notes
- The equipment complies with the GMP standards of the pharmaceutical industry and is suitable for pharmaceutical packaging.
- Different models and workstation configurations can be customized according to customer needs
- Packaging bag size can be adjusted according to actual needs
- The compressor is provided by the user and must meet the specification requirement of 0.6m³/min.
